AXIS FD60 - 54mm

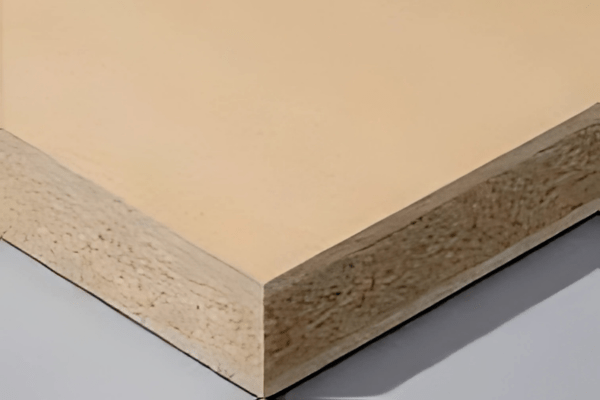

The AXIS FD60 is a high-performance 3-layer particle board core designed for fire-rated doors. With a 54mm thickness, it provides 60 minutes of fire resistance, certified to BS 476 standards.
Ideal for commercial and residential fire doors requiring certified safety performance.
- Suitable for PAS24
- U-Value (W/km²): (Doorset)
- Durability Tested to Severe Duty
- Suitable Finishes: Veneer, Luminate or Paint
Key Features
AXIS FD60 3-layer particle board developed as a high-performance door core
For internal (non-structural) use in domestic and commercial premises in dry conditions
Smooth, suitable for Veneer, Laminate, PVC, and Paint.
Produced with recycled softwood, hardwood, and Vermiculite resin.
BS 476: Part 1987 :22, BS EN 2008/1:2000-1634 & BS EN 1:1999-1363
BS476: Part 1987.
IFCC - CERTIFICATE NO: 1621.
PAR/2119/02.
Resists fire for up to 60 minutes.
100% Recycled Product.
600 kg/m³ ± 10.
33.5 kg/m²
11 MPa
54mm ± 0.3
E1 - <8mg/100g
- 915 × 2135 × 44mm
- 1045 × 2155 × 44mm
- 1220 × 2440 × 44mm
Single Doors:
Unglazed: 34dB/Rw
Glazed: 36dB/Rw
Double Doors:
Unglazed: 33dB/Rw
Glazed: 35dB/Rw
0.39 MPa
